Item # PWP20, 20 amp Panel Mount Unit (requires 20 amp line & 20 amp outlet)

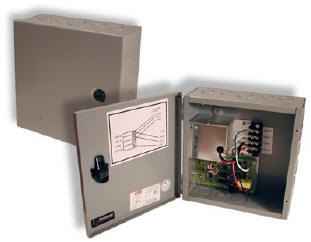

Brick Wall panel surge protector

This version of the Brick Wall line of surge suppressor/line filters is a panel-mounted, 20amp unit. Allowing protection for an entire 20amp circuit, this unit's applications range from fire alarm and security system sub-panels to dedicated computer room circuits.
  • Made in the USA

  • Connections: (4) #8, 30amp barrier strip; Ground, Neutral, Line, Load

  • Self-test circuit w/ visual indicator

  • 0.08" thick aluminum heat diffuser chassi

Jump to order form

Outlets Available None, this unit has a terminal strip for connection.
Load Ratings 20A at 120 volts, single phase, 50-60 Hz; full load regulation 1%.
Endurance Test 1,000 surges, 3,000 amperes, 6,000 volts, SVR=330, actual Suppressed Voltage <280 Volts, no failures, L-N (ground wire protection) mode, U.S. Gov't. Mode 1)
Limiters Series surge reactor current limiter; cascaded, auto-tracking dual polarity voltage limiters; dual pulse inverters. Parameters optimized for switch-mode power supply protection.
Clamping Voltage Onset 172 volts nominal; 2 volts above peak line voltage (auto-tracking).
EMI/RFI Filter Response (bi-directional, wave tracking): With 50 ohm Rg load: 3db at 5kHz; 26dB at 100kHz; 38dB at 300kHz.
Let-Through Slew Rate 5,000 volt/microsecond disturbance reduced to 28v/microsecond within AC power wave envelope, and less than 10v/microsecond outside the power wave envelope.
Maximum Applied Surge Pulse Joule Rating Unlimited rating (due to surge current limiting) (8x20microsecond).
Maximum Applied Surge Pulse Voltage 6,000 volts (1.2 x 50 microseconds) (Industry Standard rating).
Maximum Applied Surge Pulse Current >100,000 amperes (unlimited due to current limiting) (8 x 20 microseconds).
Endurance, C62.41-1991 (formerly IEEE 587) Category B3 (C1) pulses 2kv>100,000; 4kv>10,000; 6kv>1,000 (NRTL verified).
Dimensions 10" H x 10" W x 4" D
Weight 10.6 lbs.


Brick Wall PWP20 20A Panel unit Surge protector.  This unit does not have outlets and requires installation by a licensed electrician.

Note that these are mostly built to order and will usually take several days




    Manufacturer's Warranty

Brickwall Surge Protectors have a 10 year parts & labor warranty and limited lifetime warranty (after ten years lifetime referb at 20% of original retail cost).


Jump back to picture menu at top of page

Shipping Warranties


Shipping to US 48 states (usually about  $12-$18) will show up in the Shopping cart before you have to type in your name and address information.

Need it faster than 3-5 day ground?
Call or email for a quote if time is of the essence or you want expedited shipping. Note that most units are usually in stock but sometimes must be built to order and that usually adds only 2 or 3 business days.

Shipping to Canada will generally be double what the shopping cart says.
Will confirm Canada shipping price with you by email before processing the charge or send you a Paypal invoice for the additonal shipping .

Shipping charges to Hawaii will be at least $75 and possibly much more. We had to discontinue ground shipments to Hawaii because the trucks kept sinking.  Email for a shipping quote to Alaska or Hawaii.

For a shipping quote to other locations, send an email with your proposed order and postal code to:

Covered by manufacturer's full 10 year US warranty.
